Fault Indicators

KASHEF 002

Earth Leakage Indicator

The EECC-FI is a 3 phase Fault Indicator designed for underground power cables in RMU systems. It detects and locates earth faults and overcurrent faults, improving network reliability and reducing downtime. The device utilizes electromagnetic induction and an intelligent MCU with Wi-Fi-based configuration for easy setup.

• ✔ Accurate Fault Detection:Earth faults (Red LED), Short circuits (Phase Red LED), Power loss (Yellow LED), and Low battery (Blue LED).
• ✔ Wi-Fi Web Server:Simplifies configuration and parameter settings.
• ✔ Automatic Reset:Resets after fault clearance via voltage restoration, or transient faults.
• ✔ Timer Reset:Resets the fault if a pre-defined time duration has passed without power restored to prevent end-less indication loop.
• ✔ Manual Reset:Reset via Test/Reset button.
• ✔ Current Measurement:Supports zero-sequence and phase current monitoring via MODBUS RTU (RS-485).
• ✔ Energy-Efficient Design:Long-life lithium battery, replaceable without tools.
• ✔ Easy Installation:External bracket for mounting, sensor clamps for cables.

KASHEF 001

Fault Passage Indicator

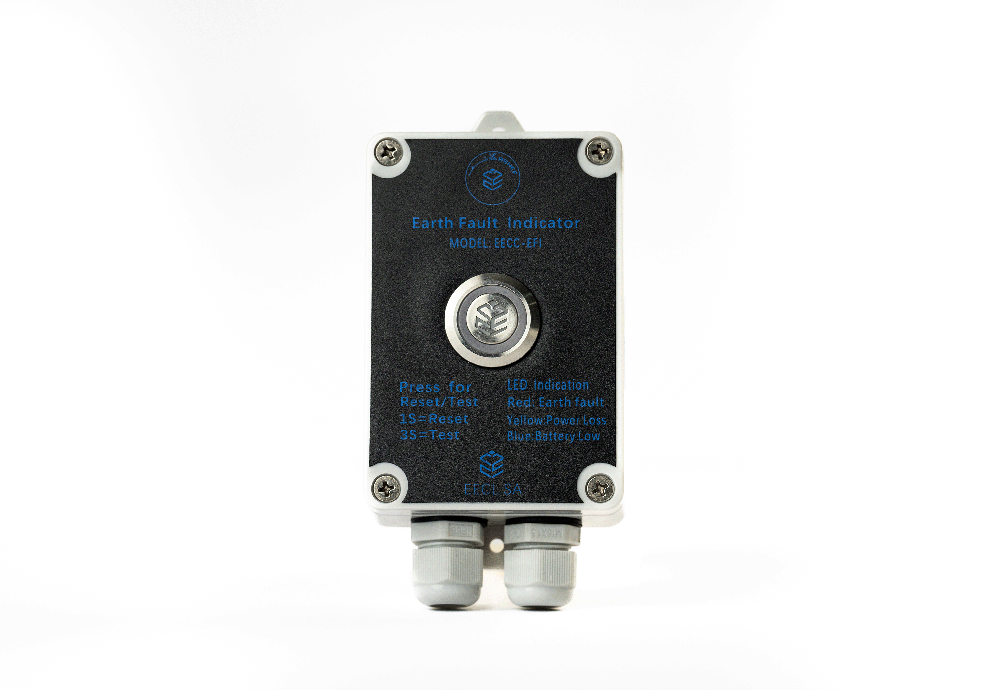

The EECC-EFI is an Earth Fault Indicator for underground network, designed to detect and locate earth faults in underground cables, enhancing power distribution reliability and reducing downtime.

• ✔ Accurate Fault Detection: Uses electromagnetic induction and microcontroller processing.
• ✔ LED Alarm Indicators: Red for earth fault, blue for low battery, yellow for power loss.
• ✔ Low Power Design: Long-lasting lithium battery (10+ years).
• ✔ Automatic Reset: Resets after fault clearance via voltage restoration, or transient faults.
• ✔ Timer Reset: Resets the fault if a pre-defined time duration has passed without power restored to prevent end-less indication loop.
• ✔ Manual Reset: Reset via Test/Reset button.
• ✔ Easy Installation: External bracket for mounting; sensor clamps around power cables.

KASHEF 201

Undergrund Fault Indicator

The EECC-SEFI is a Smart Earth Fault Indicator designed for underground power cables in Ring Main Unit (RMU) systems. It detects and locates earth faults (ground faults), enhances power network reliability and reducing downtime with ability for remote communication to SCADA systems and SMS.

✔ Accurate Fault Detection:

• Earth Fault (Red LED)
• Power Loss (Yellow LED)
• Low Battery (Blue LED)

✔ User-Friendly Interface:

• Test/Reset button for manual testing & resetting.
• Adjustable reset time via DIP switches.
• Multi-level fault current settings.

✔ Automatic Reset Functions:

• Time-based Reset:Clears alarm after a set period if the fault is gone.
• Power Restoration Reset: Resets when AC power is restored.
• Transient Reset: Clears faults automatically within 10s if supply voltage remains present.

✔ Long Battery Life & Easy Maintenance:

• 10+ years battery life.
• Maintenance-free backup power supply.
• Easy battery replacement.

✔ Fault Alerts:

• LED Indicators signal different faults.
• SMS Notifications for real-time alerts.
• IEC104 signals accessed through the installed SIM’s IP address.

✔ Reset Options:

• Automatic Reset based on fault clearance.
• Manual Reset via Android App, SCADA.
• Timer Reset: Resets the fault if a pre-defined time duration has passed without power restored to prevent end-less indication loop.

KASHEF 004

Overhead Fault Passage Indicator

The EECC-FI is a 3 phase Fault Indicator designed for underground power cables in RMU systems. It detects and locates earth faults and overcurrent faults, improving network reliability and reducing downtime. The device utilizes electromagnetic induction and an intelligent MCU with Wi-Fi-based configuration for easy setup.

• class="bold">Simultaneous Waveform tracking, enabling sharp fault detecting.
• Electric Field monitoring for accurate Earth Fault Detection.
• Permanent Short-Circuit, Transient Short Circuit, Earth Faults detection.
• Indication visibility from all directions during day & night times.
• Self-Power using Built-in PV panels & EMF Power Harvesting Technology.
• Bluetooth Wireless connection for local configurations & fault simulation using EECC Fault Indicator App for Android OS.

KASHEF 601

Overhead Smart Fault Passage Indicator

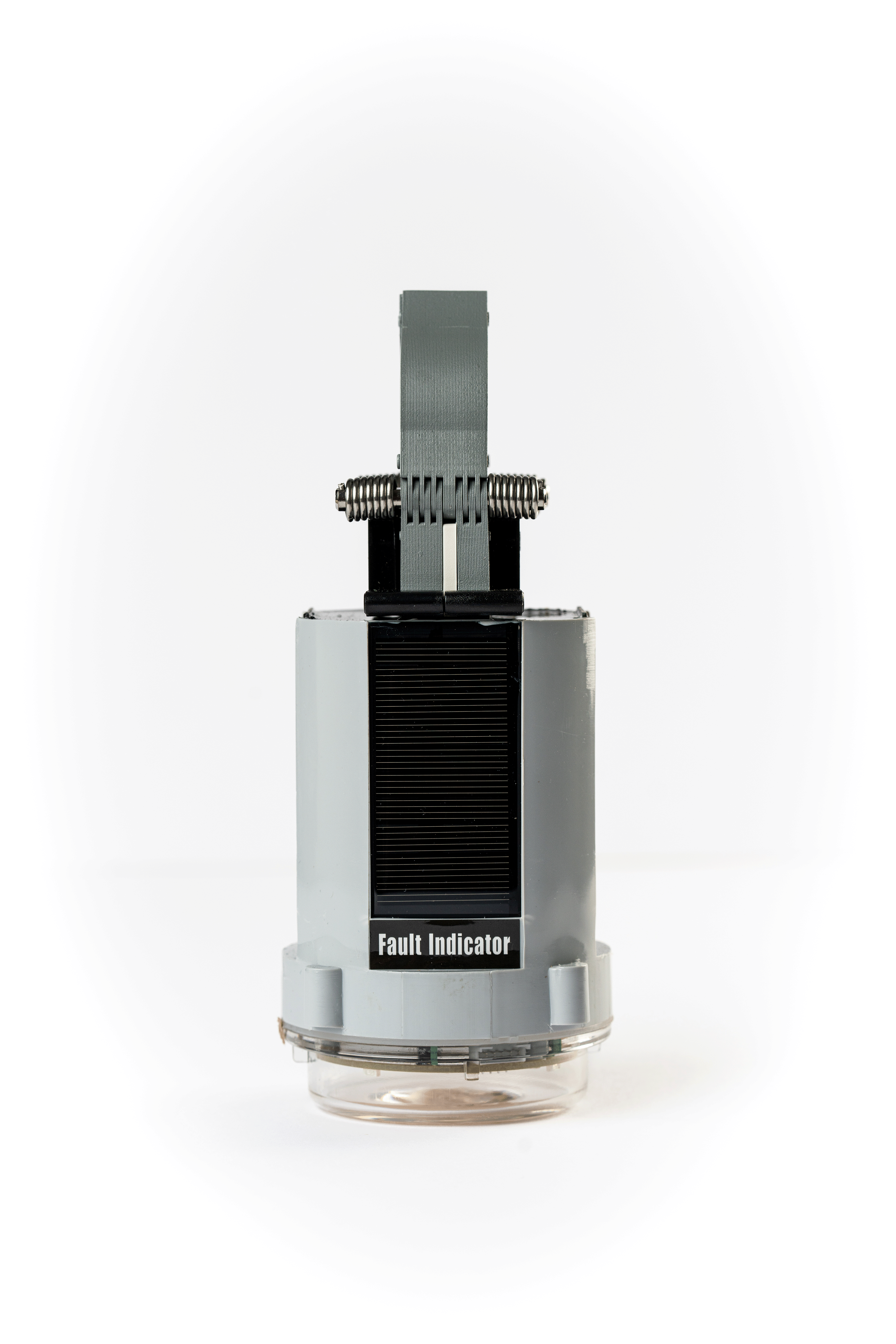

The EECC-SFPI is an advanced overhead Fault Indicator system designed for power lines up to 70kV. It utilizes CT sensors and an MCU to detect short circuits and earth faults, improving response times and network reliability.

• ✔ Real-Time Monitoring:Tracks waveform changes for precise fault detection.
• ✔ Visible Fault Indication: 360° high-brightness LED for visibility day & night.
• ✔ Group Installation: Typically installed in sets of 3, with one device handling 4G communication.
• ✔ Bluetooth Connectivity: Enables local communication between devices and operators for data exchange & configuration.
• ✔ Enhanced Power Distribution Safety: Reduces downtime, improves maintenance efficiency, and lowers operational costs.
